Items |
Technical parameters |
|
Ambient temperature |
-20~45 ℃ (working), -40~65 ℃ (storage) |
|
Relative humidity |
10-80% RH (working), 5-90% RH (storage) |
|
Altitude |
≤ 3000m |
|

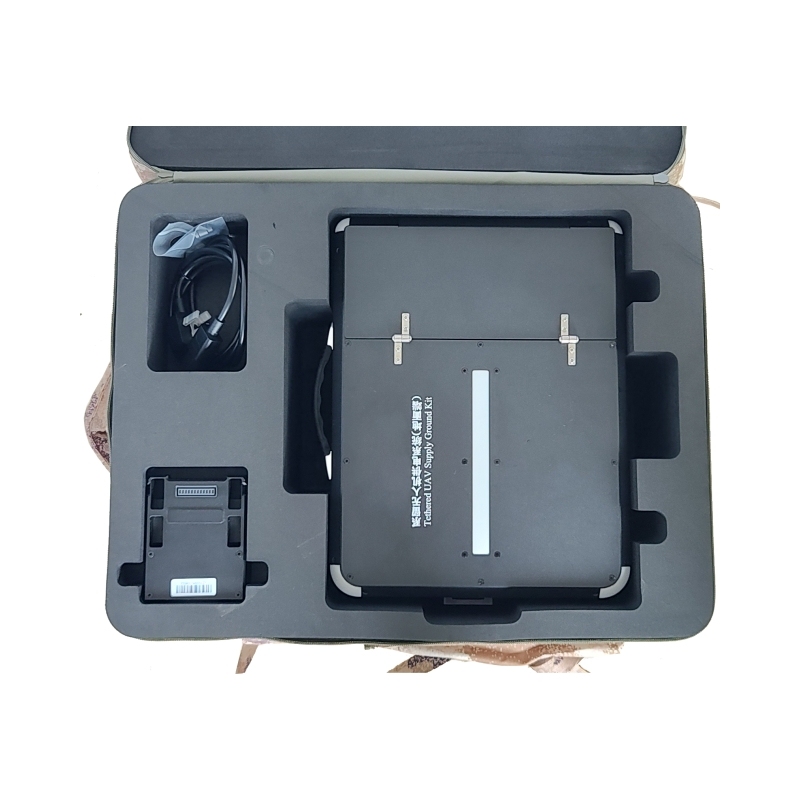

Ground power module |
Input voltage |
176-264Vac wide range input, single-phase 220Vac@45-65Hz |
Output power |
3500W (rated long-term output), 3850W (peak value ≤ 30s) |
|
Storage cable length |
Supporting maximum storage cable ≥ 120m |
|
Retraction speed |
0-2m/s, adjustable |
|
Cable tension |
0-10N, adjustable |
|
Interface |
Input socket with switch, cable output XT60 connector |
|
Keys and switches |
High-voltage on/off button, cable forced retraction button, alarm indicator light |
|
Size |
360 × 280 × 165 ± 0.5mm, excluding foot pads and handles |
|
Weight |
9.2 ± 0.2kg, including 110m tethered cable |
|
Tether cable |
Material |
Silver plated copper wire wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer |
DC resistance |
10.5 ± 0.2 Ω, 100m@20 ℃ loop |
|
Tensile strength |
≥ 50kg, resistant to repeated retraction and release times ≥ 500 times |
|
Insulation strength |
≥ 3000Vdc, no breakdown for 1 minute |
|
Cable length |
55/110 ± 2m, supporting customized cable length |
|
Outer diameter |
2.6 ± 0.2mm |
|
Weight |
1.2 ± 0.05kg/100m |
|
Air module |
Output voltage |
51.5 ± 0.5Vdc, constant voltage output |
Output power |
3000W (rated long-term output), 3500W (peak value ≤ 10s) |
|
Protection function |
Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection |
|
Isolation voltage |
3000V (Vin-Vout), 1min, leakage current ≤ 5mA, no breakdown, flashover, or corona phenomenon |
|
Installation method |
Replacement battery latch, docking battery, side mounting |
|
Heat dissipation method |
External fan for active cooling, reserved air ducts for forced air cooling |
|
Interface |
Input XT60, output battery interface (powered by drones), output XT60 (powered by lighting) |
|
Protection level |
IP54 |
|
Size |
158 × 92 × 110 ± 0.5mm |
|
Weight |
960 ± 10g |
