MTOW 18kg 3.0KW 110m Cable Auto Reel Tether Power Station
1. Typical characteristics
1). Small size, light weight, and can be easily carried by rolling or carrying the lever.
2). Easy to operate, no need to operate tethering box during UAV flight.
3). Comprehensive protection function, fault elimination and self recovery.
4). The fully automatic retraction and release function eliminates the need for manual operation during the entire takeoff and landing process.
5). The onboard power supply has a constant voltage output, effectively protecting and using batteries.
2. Adaptive drone
1). Support flight altitude: ≥50/100/150m (tethered cable 55/110/160m, reserved safety length. Optical fiber optional).
2). Support takeoff weight: 10-15kg (drone power efficiency varies, this data is for reference only).
3). Support flight duration: ≥ 48h (the system can support working duration, which depends on the structure and electrical fatigue resistance of the drone).
3. Functional characteristics
1). Cable retraction and release function: Follow the drone takeoff and landing to synchronously retract and release the tethering cable, and adaptively adjust the tension.
2). Protection function: Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, over temperature protection, fault elimination and self recovery.
3). Data display function: The 4.3 inch touch screen displays data such as voltage, current, temperature, cable outlet length, date, time, operation records, fault records, and working status information.
4). Setting and adjustment function: The display screen supports the setting and adjustment of wire winding speed, wire winding tension, wire release tension, safety length, date and time, and supports switching between Chinese and English display.
5). Fault alarm function: When the system malfunctions, the display screen scrolls to display fault information, and the fault alarm light flashes red and beeps to alert.
6). System equipment carrying: Equipped with a lever, roller, and handle, it can be rolled or carried by hand with a lever.
4. Air module (onboard power supply)
5. Tether cable

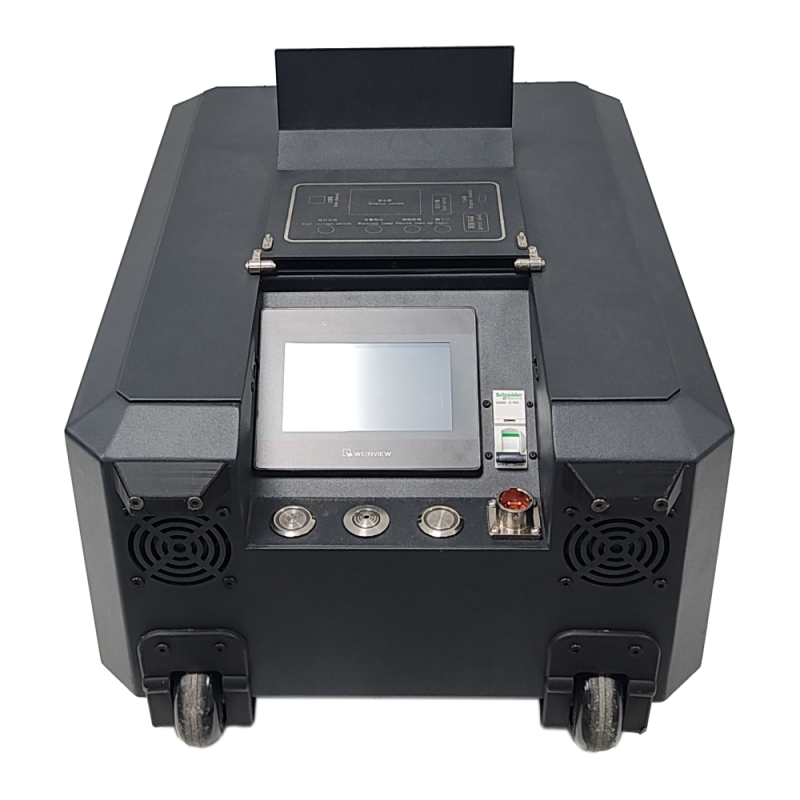

6. Ground module (tethering box)
|
Items |
Technical parameters |
|
|
Ambient temperature |
-20~45 ℃ (working), -40~65 ℃ (storage) |
|
|
Relative humidity |
10-80% RH (working), 5-90% RH (storage) |
|
|
Altitude |
≤ 3000m |
|
|
Ground power module |
Input voltage |
176-264Vac wide range input, single-phase 220Vac@45-65Hz |
|
Output power |
3500W (rated long-term output), 3850W (peak value ≤ 30s) |
|
|
Storage cable length |
Standard storage cable 110m, supporting maximum storage cable ≥ 160m |
|
|
Retraction speed |
0-2m/s, adjustable |
|
|
Reel in/out tension |
0-10N, adjustable |
|
|
Interface |
Input aviation plug, fiber optic FC connector (optional), cable output XT60 connector |
|
|
Buttons and switches |
Air switch, high-voltage on/off button, cable forced retraction button, alarm indicator light |
|
|
Size |
450*350*210 ± 0.5mm, excluding foot pads and handles |
|
|
Weight |
12.5 ± 0.5kg, including 110m tethered cable |
|
|
Tether cable |
Material |
Silver plated copper wire wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer |
|
Fiber optic (optional) |
The tethered cable is an optoelectronic composite cable, which contains tightly packed single-mode fiber optic and can be optionally equipped with fiber optic communication |
|
|
DC resistance |
10.5 ± 0.2 Ω, 100m@20 ℃ loop |
|
|
Tensile strength |
≥ 50kg, resistant to repeated retraction and release times ≥ 500 times |
|
|
Insulation strength |
≥ 3000Vdc, no breakdown for 1 minute |
|
|
Cable length |
55/110/160m± 2m, supporting customized line length. fiber optic with FC connector (optional), |
|
|
Outer diameter |
2.6 ± 0.2mm |
|
|
Weight |
1.2 ± 0.05kg/100m |
|
|
Air module |
Output voltage |
50 ± 0.5Vdc or 25 ± 0.3Vdc, constant voltage output, supporting voltage customization |
|
Output power |
3000W (rated long-term output), 3500W (peak value ≤ 10s) |
|
|
Protection function |
Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection |
|
|
Communication function |
CAN communication reports voltage, current, temperature and other data as well as working status information |
|
|
Isolation voltage |
3000V (Vin-Vout), 1min, leakage current ≤ 5mA, no breakdown, flashover, or corona phenomenon |
|
|
Installation method |
Reserved installation ears, fixed with screws |
|
|
Heat dissipation method |
Built-in fan for active heat dissipation, reserved air duct for forced air cooling |
|
|
Interface |
Input XT60, output XT90 * 2 |
|
|
Size |
158*134*50 ± 0.5mm, excluding mounting lugs |
|
|
Weight |
1100 ± 20g, without external connectors |
|
