RTS400E RTK multi applications police tethered drone

Item No.: RTS400
Max take-off weight: 6.8kg,
Max loading: 3kg
Max horizontal flight speed: 23m
Max take-off altitude: 7000m
Max flight time: 63mins
Video transmission range: 15km
AI function: Target inspection, follow, recognition
$0.00
/ Pieces
Description Specification Review
Description

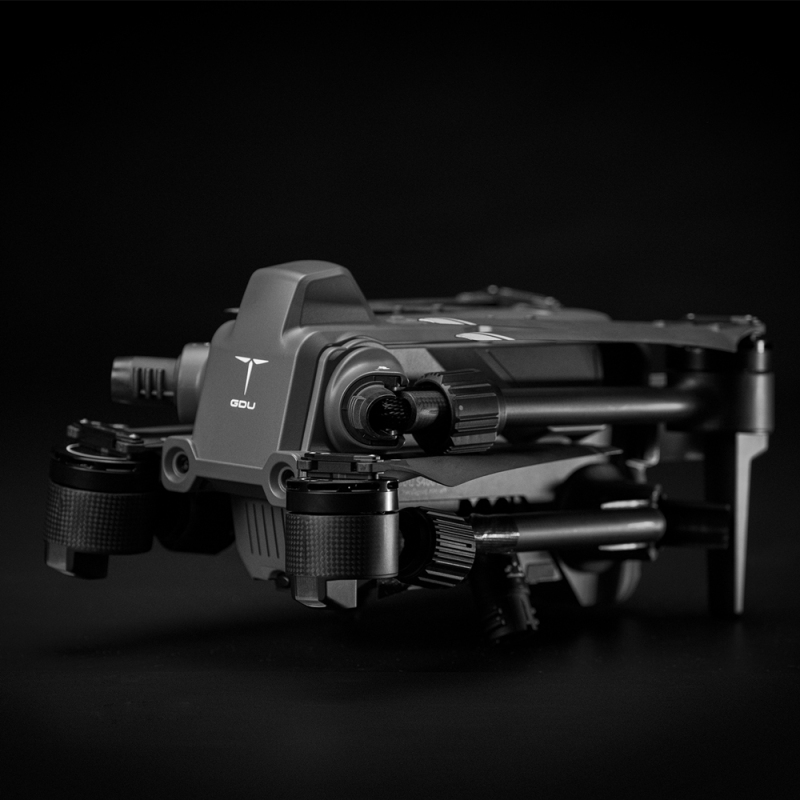

RTS400E RTK Multi Applications Police Drone


RTS400E is a brand-new light industrial-grade flagship UAV. It integrates a number of cutting-edge technologies of UAV systems, and has made major breakthroughs in stability, autonomy, and intelligence. With the industry-leading UAV cross-line-of-sight networking technology, it can easily realize the intelligent interconnection of multiple UAVs and control equipment, and double the operation efficiency.

The frame is made of magnesium alloy, the body is foldable, safe and stable, and easy to carry. Equipped with millimeter-wave radar and integrated binocular perception system, it can achieve omnidirectional obstacle avoidance. At the same time, the on-board AI edge computing module ensures the refinement automation and
visualization of the inspection process.



Multi-machine Relay Networking, Cross-barrier Communication

RTS400E UAV has industry-leading relay networking technology, support "One-Control -Two" (one remote controls two drones), "Two-Control-One" (two remote controls one drone) and "Star Networking" (multi-UAV linkage networking) modes. In the face of long-distance&obstacle crossing, such as mountains, buildings, and even areas without network, one piece of RTS400E drone is enough for signal relay, which can break through the operating boundaries of conventional drones and easily deal with complex terrain.


63mins flight life, battery capcitiy 14600 mAh

RTS400E’s 63mins long battery life brings more powerful working strength. Compared with traditional UAVs under performing the same amount of tasks, the number of battery swaps of RTS400E can be significantly reduced, effectively improving the efficiency of task execution.


Professional&Powerful& Lightweight
With a super load capacity of 3kg, it can carry a variety of payloads, meet the professional operation needs of
different industries such as utility, fire-fighting, environmental protection, law enforcement, and comprehensive social management. The professional-grade RTS400E with super powerful performance with a backpack size, which is light and convenient, and user-friendly in field operations.



Millimeter Wave radar perception, Day and night obstacle avoidance, cable obstacle avoidance
“Visual obstacle avoidance + millimeter wave radar" dual obstacle avoidance fusion technology endows the RTS400E with day and night omnidirectional environmental perception and obstacle avoidance capabilities.

Megapixel thermal camera, No details should be missed
RTS400E is equipped with a new self-developed 1K infrared dual-sensor camera, with an effective infrared pixel of 1280*1024, the industry-leading "the eye of infrared", perception of more details; dual-light fusion imaging, showing a clearer edge than single infrared and outline details.

21T computing power quadra-sensor camera
It has 21TOPS computing power, which greatly improves the computing speed and accuracy of target recognition, motion analysis, and image processing. It can be used for power defect recognition,human face recognition, motion detection, etc.


One Machine for Multiple Purposes,
Speeding Up the "Sharing Economy" Era

Multi-scenarios Application
With the flexible applicability of UAVs, it can simultaneously cover application requirements of remote "regular inspection" and "detailed inspection", and share UAV models in different operating scenarios to maximize economic benefits.
Support dual mount
It provides dual gimbal interfaces, with a maximum load of 3kg. It can support two independent payloads for comprehensive operations at the same time, and can also cope with complex operation requirements.

Flight ǁ
Flight II App is the flight software for RTS400E, which integrates various professional functions, and easy to use. The flight planning function can be used to set the route, control the drone to operate autonomously, simplify the work process and improve the work efficiency.


UAV Control Cloud Platform
A one-stop drone live broadcast cloud platform that integrates information aggregation, information processing and synchronization functions. Flight II can transfer data to the cloud, data exchange, and expand the capabilities of UAV.
Cloud deployment access anytime, anywhere
Data cloud synchronization, one-click live-streaming
Open registration, share information among team members
One-stop operation and maintenance monitoring, real-time control of drone operation

Work Flow
Based on a variety of leading technologies such as stable flight control, AI edge computing module, highly sensitive perception system, RTK high-precision positioning, combined with 3D point cloud, automatic route construction, thermal imaging detection and other advantageous functions, the system efficiently completes
firefighting, oil pipeline, automated inspection operations such as autonomous flight, AI intelligent identification, and one-click report generation in the fields of electric power and environmental protection.
Flight II App is the flight software for RTS400E, which integrates various professional functions, and easy to use. The flight planning function can be used to set the route, control the drone to operate autonomously, simplify the work process


Compatible Payloads




Specification
Specification:

Model

RTS400 RTK

Power

Electric

Size

unfolded(without propellers): 549 × 592 × 424 mm
folded(with propellers): 347 × 367× 424 mm

Symmetrical motor wheel base

725mm

Standard takeoff weight

3.4kgno payload

Maximum takeoff weight

7kg

Maximum load

3kg

Operating temperature

-20°C to 60°C

Max flight time

63min

Vertical hover accuracy

±0.1m(RTK/Visual positioning )/±0.5m(GPS)

Horizontal hover accuracy

±0.1m(RTK)/±0.3m(Visual positioning)/±1.5m(GPS)

Positioning accuracy

Vertical:1cm+1ppm

Horizontal:1.5cm+1ppm

Max angle of inclination

35°

Max ascending velocity

6m/s

Max rate of descent

5m/s

Maximum horizontal flight speed

82.8km/h

Maximum resistance wind speed

15m/s

Maximum flight altitude

5000m&7000m

IP Protection Level

IP45

Transmission maximum distance

2.4G/5.8G15KM (Flying at an altitude of 200 meters without any interference)

Sensory perceptual system

Omni-directional(6 directions),                                                                        Obstacle perception range

(Buildings, trees, utility poles, towers over 10m) Front:0.7m~40m

(80m max detectable distance for large metal objects) Left&right: 0.6m~30m

(40m max detectable distance for large metal objects) Up&down&back: 0.6m~25m

Work environment: rich texture on the surface, sufficient lighting conditions (>151ux, indoor fluorescent light normal illuminate)

Payload mount

Interchangeable

Thermal payload camera

ModelPQL 01
Visble camera
optical CMOS, 20 effective megapixel
Optical: optical zoom 18X, 20 megapixels
Thermal camera resolution: 640×512
Laser ranging: 5-1600m
Image stabilization accuracy: ≤0.005°

AI function

Target inspection, follow, recognition

Flight safety

ADS-B function, Can sense surrounding civil aviation aircraft information for evasion
